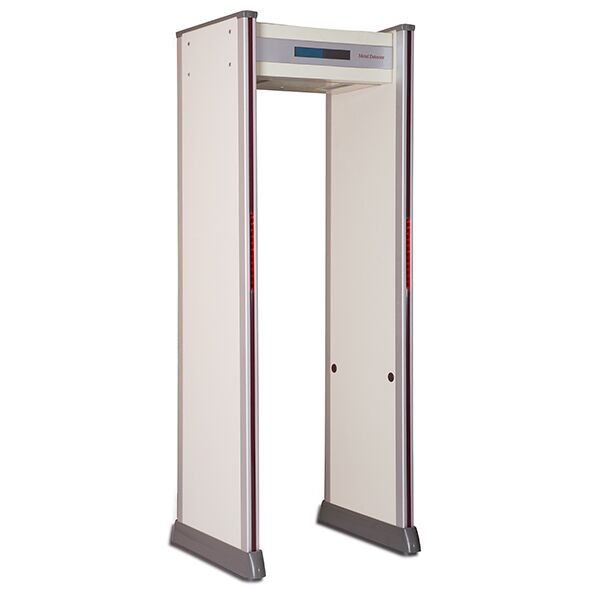

Walk through metal detector detector AT300B

Additional information

Detectiong zones

6/12/18zones

Outer frame

2220mm (h) x 820mm (w) X 610mm (d)

Inner frame

2000mm (h) X 700mm (w) X 610mm (d)

Power

10W

Characteristic
IP55 weather proof design, supporting outdoor work
Operation way: remote control only
Two LED light bars on both door panels: gives alarm corresponding to the height or human body. 6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
Sensitivity adjustable from Level 0 to 299
High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies—eliminate the potential effects from X-ray units, radios and other electrical interference sources.
Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
(Optional)Connect with computer, camera, turnstile, etc
Compliance
International ISO9001 ●ISO14001 ●HSMS18001 ●CE
National (China) Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
In accordance with: EN60950, WN50081-1, EN50082-1
Electric safety: EN60950
Anti-interference standard: EN50082-1
